Partnered with the Shed Geek

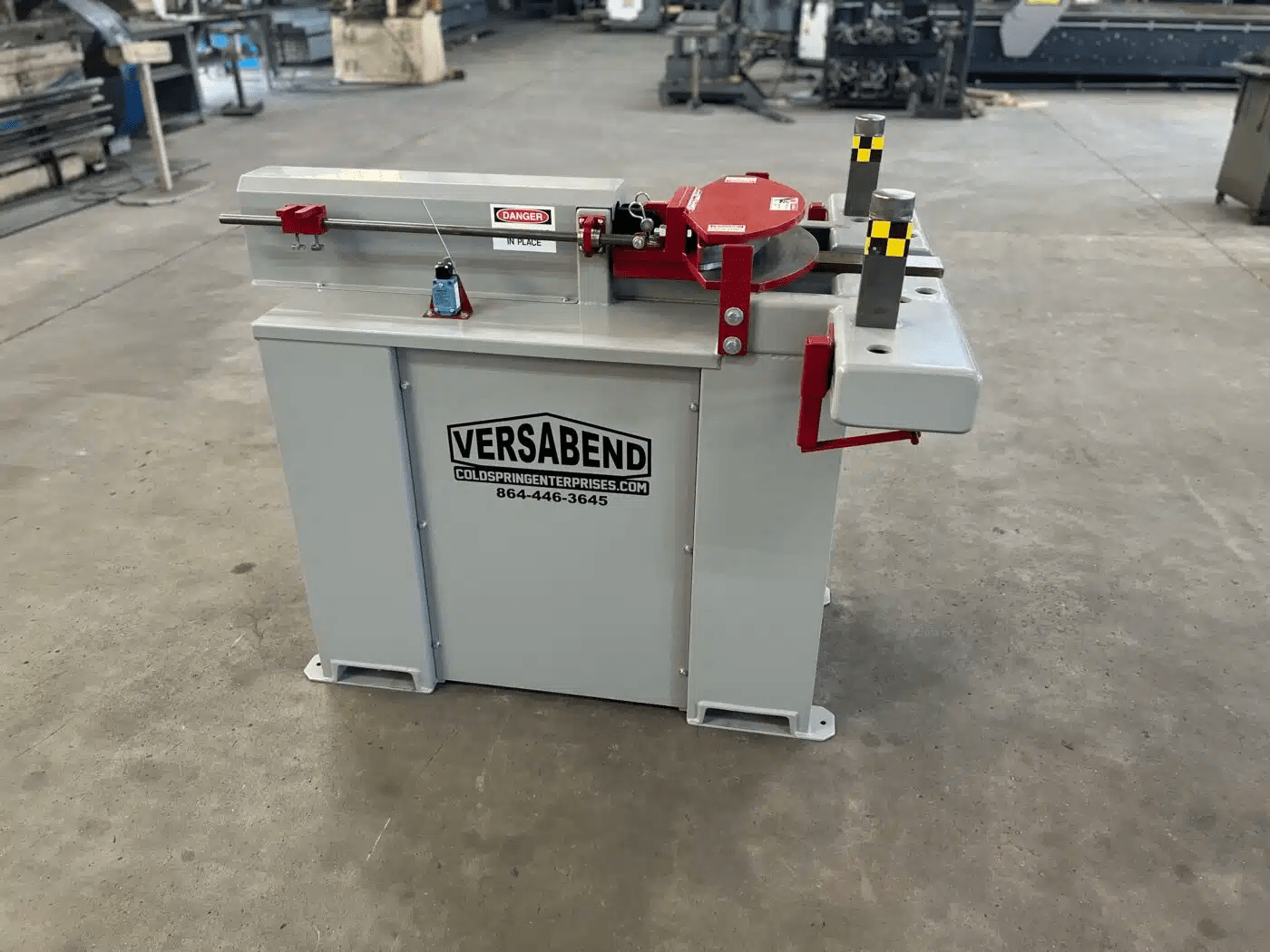

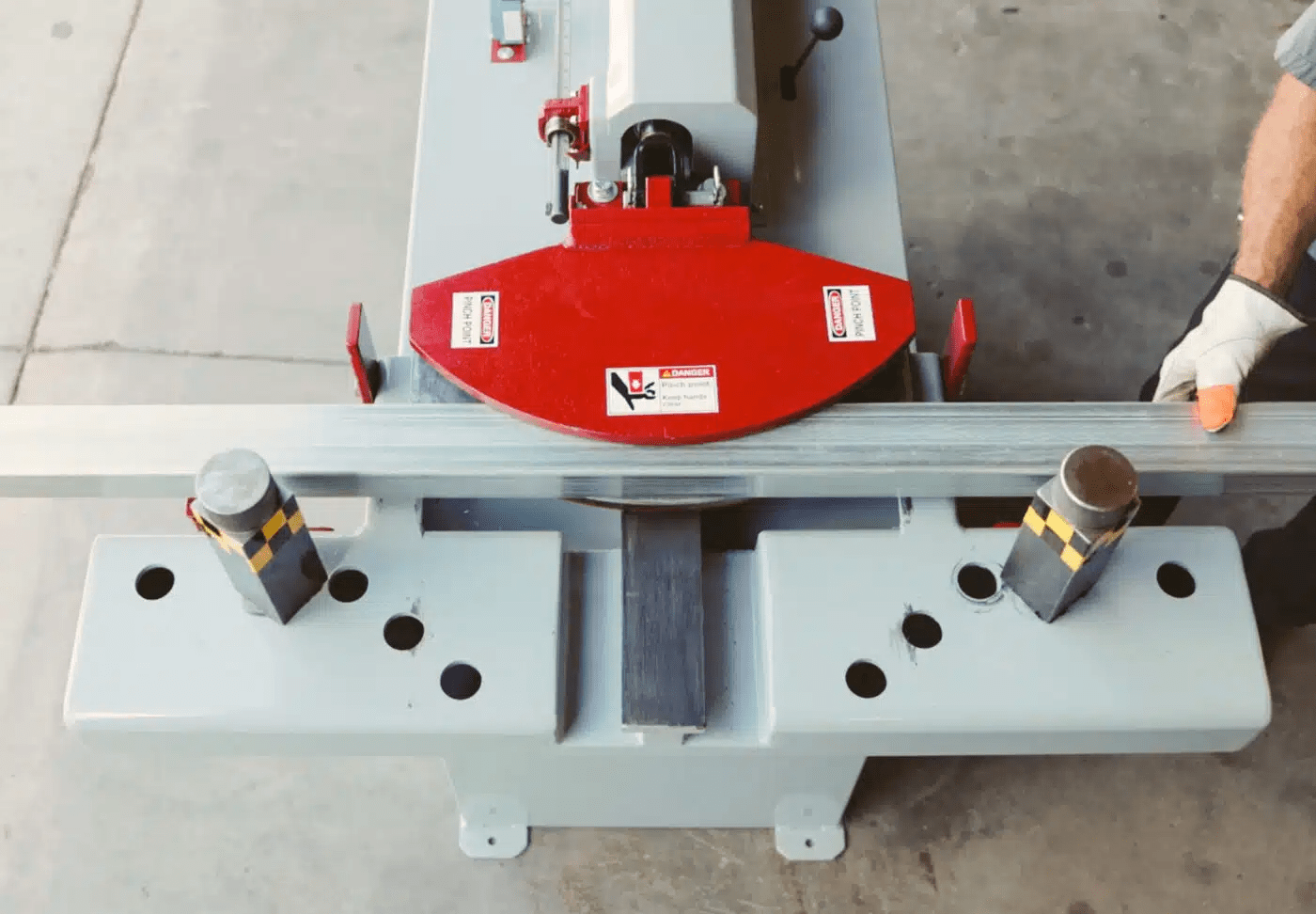

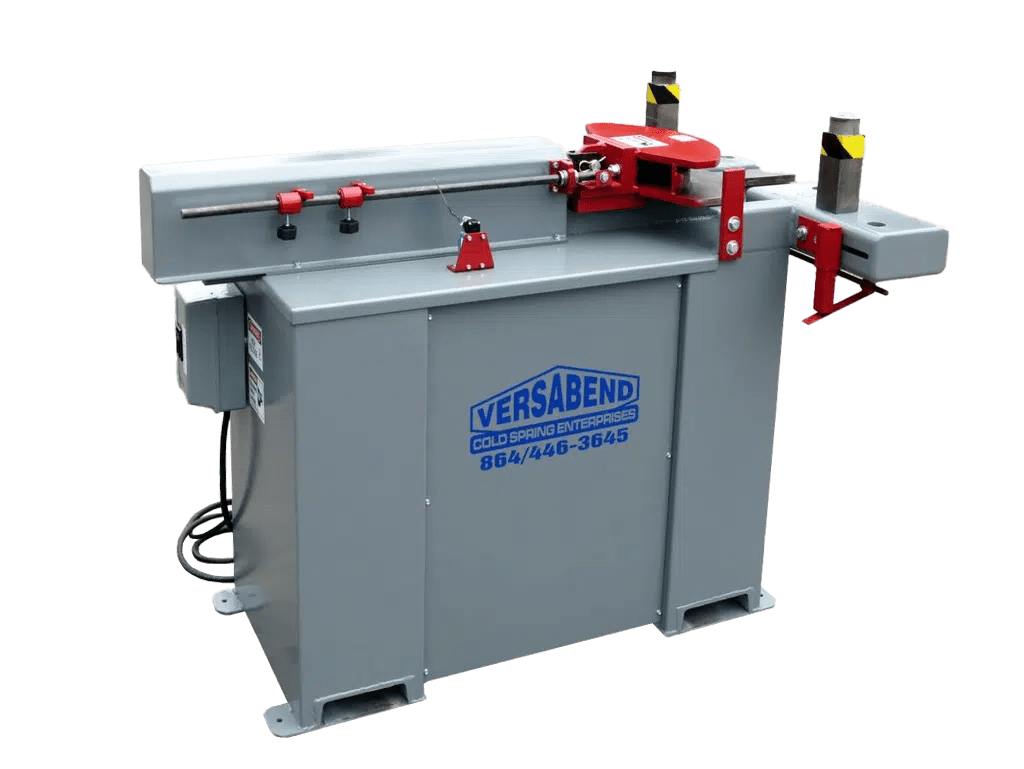

Meet the Versabend, a rectangular and square tube bending machine for consistent, kink-free bends. Perfect for carport tubing, metal building frames, and more!
VERSATILE BENDER
The Versabend can bend 2\”, 2 1/4\”, and 2 1/2\ square tubing. It’s also able to bend 2”x3” rectangle tubing in both 12ga and 14ga thicknesses.
​
​
NO TOOLS NEEDED
Changing between tube-bending sizes only takes several seconds. Plus, you don’t need any tools. This allows for a much quicker tube-bending process.
​
​
QUICKER PRODUCTION PROCESS
Our square tube benders let you make a complete bow in 3 bends, while other tube-bending processes take 5 bends. This yields a faster production rate.

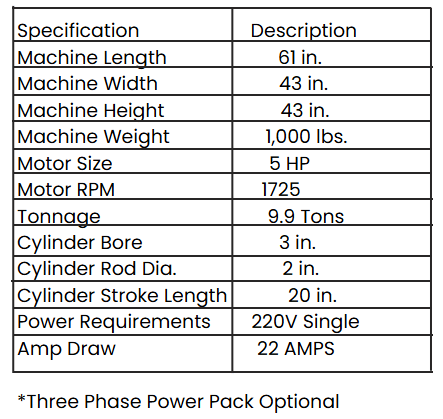

Specification Description
Machine Length 61 in.
Machine Width 43 in.
Machine Height 43 in.
Machine Weight 1,000 lbs.
Motor Size 5 HP
Motor RPM 1725
Tonnage 9.9 Tons
Cylinder Bore 3 in.
Cylinder Rod Dia. 2 in.
Cylinder Stroke Length 20 in.
Power Requirements 220V Single Phase*
Amp Draw 22 AMPS
​
*Three Phase Power Pack Optional
